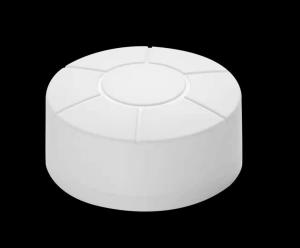

Bluetooth Beacon with New chip 8811 broadcast UUID, Major Minor reach 80 meters using 3M glue acceleration sensor
Model Name: ITBB802-A
Bluetooth beacon ITBB802_standard_8811_acceleration
Product Overview
We designed the Bluetooth gateway in house to work with our beacon, we have designed Indoor gateway and Outdoor gateway, and our gateway can support Ethernet, Wifi and 4G LTE, so it can meet all working requirement in customer side, with our Bluetooth beacon and Bluetooth gateway we can help customer to develop many projects and solutions.
We have our own factory which consist smt line, assembly line and package line, the factory is experienced and expertized in manufacturing telecom products for many years and we can delivery with high efficiency to our clients, in this time the global chipset shortage and price rise due to our factory has strong supplychain we still can fulfill customer needs with intime delivery and reasonable cost.
The low-power Bluetooth beacon ITBB802 is developed and produced based on the low-power Bluetooth chip. It is powered by two ER14250 batteries and can be used for up to 3 years (500ms broadcast once).
ITBB802 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, among which UUID, Major, Minor, Bluetooth name can be set through the mobile APP.
The broadcasting distance of ITBB802 can reach 80 meters (when the transmitting power is 4dBm), and the use of 3M glue can facilitate installation and fixation.
Specification:
Hardware Parameters
| Hardware parameters |
| Antenna |
PCB Antenna |
| Battery |
ER14250 2*1200mAh |
| Voltage |
3.6V |
| Dimensions (D×H) |
53.86*24.93mm |
| Wireless Performance |
| Wireless standard |
Bluetooth ® 4.2 |
| Frequency range |
2400MHz---2483.5MHz |
| Data rate |
1Mbps |
| Modulation mode |
GFSK Modulation |
| Encryption |
AES HW Encryption |
| Transmission power |
Tx Power -20 to +4 dBm in 4 dB Steps |
| Reveiving sensitivity |
-93dBm at 1 Mbps BLE |
| Work mode |
Peripheral |
| Other |
|
Environment
|
Working temperature: -40℃~85℃ |
| Storage temperature: -40℃~85℃ |
| Working humidity: 10%~90% Non-condensing |
| Storage humidity: 5%~90% Non-condensing |
| Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors) |
| Measurement accuracy of humidity |
±1.5 %RH |
| Humidity measurement resolution |
0.01 %RH |
| Temperature measurement accuracy |
±0.1 ℃ (20℃-60℃) |
| Temperature measurement resolution |
0.015 ℃ |
| Temperature measurement range |
-40~125 ℃ |
